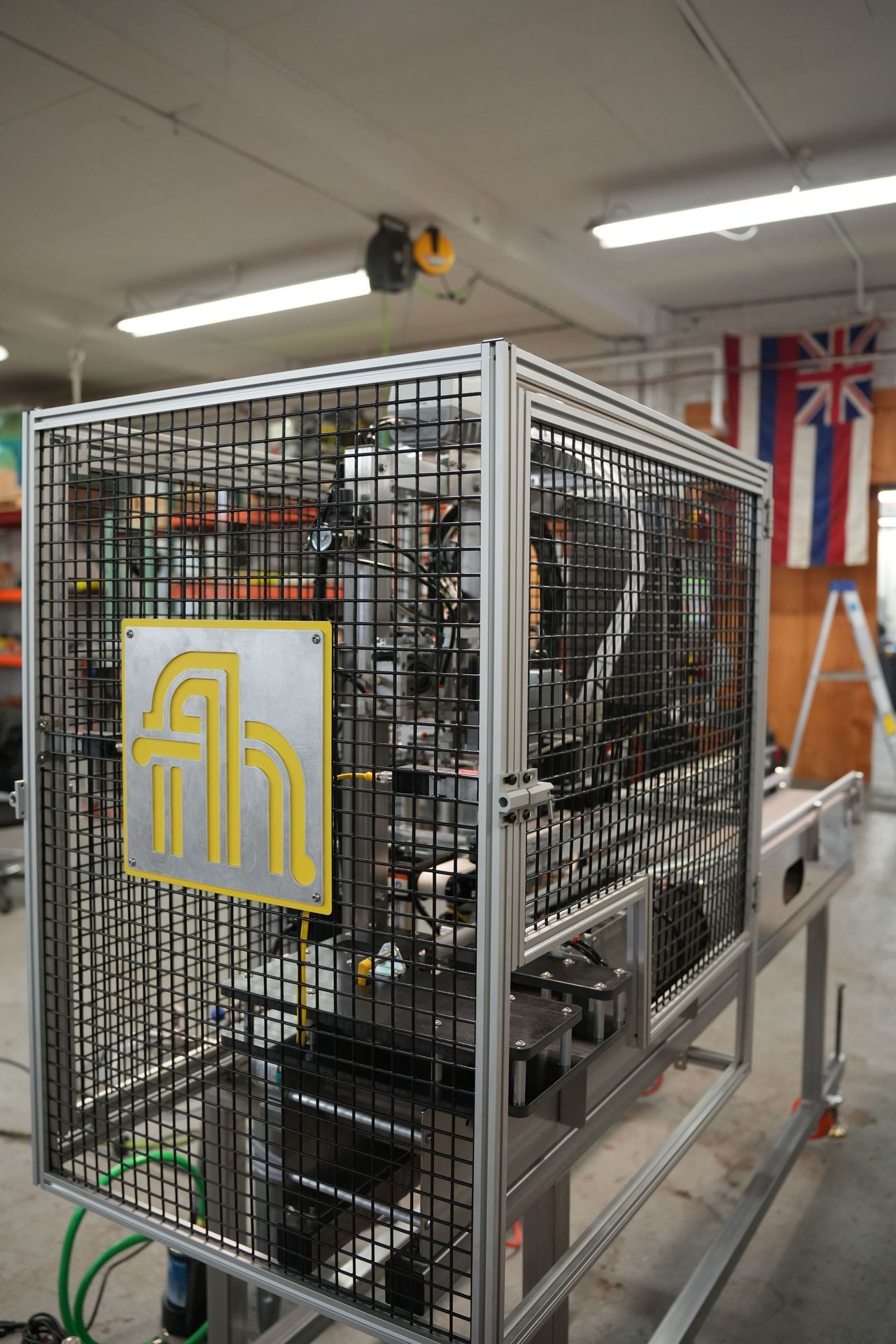

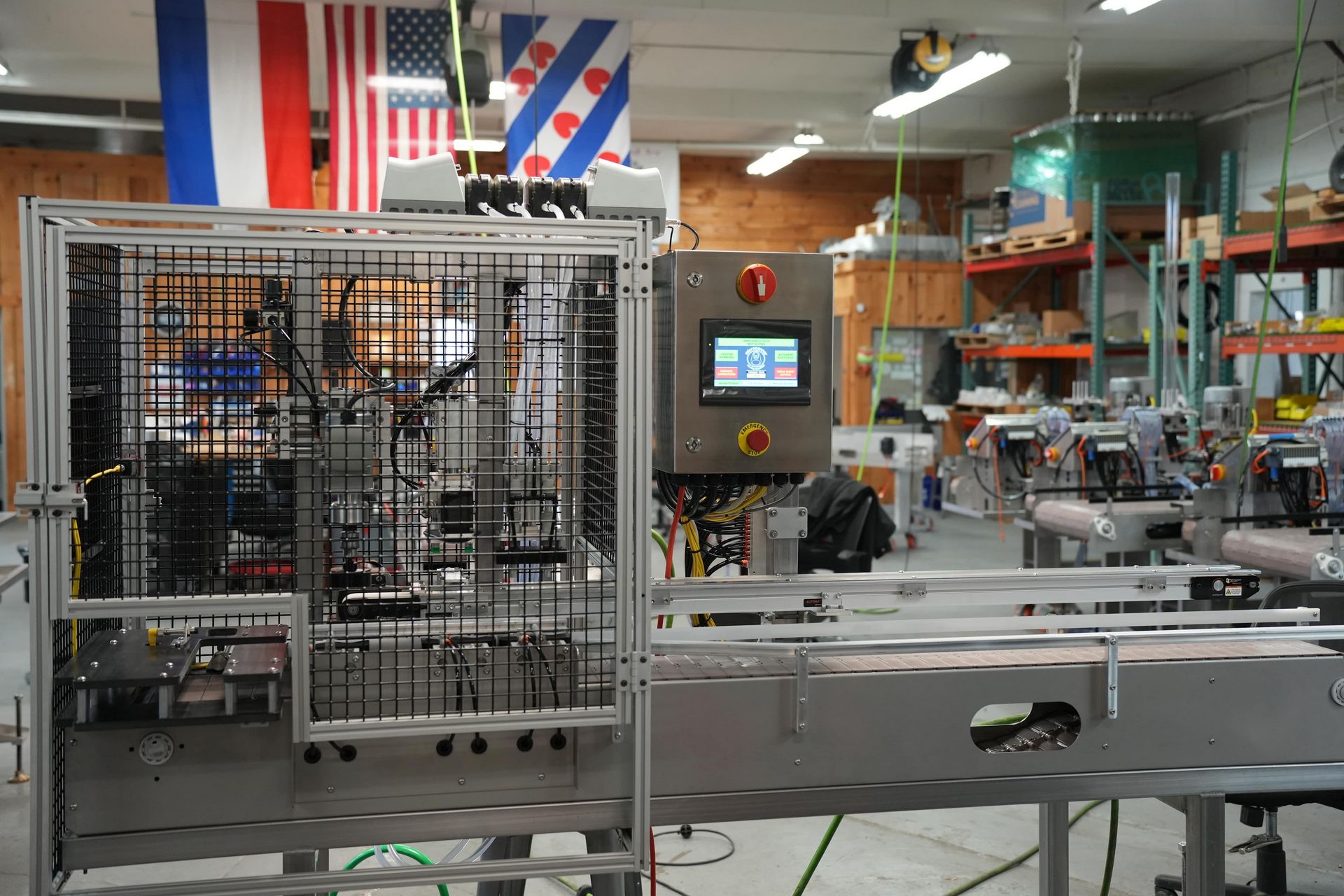

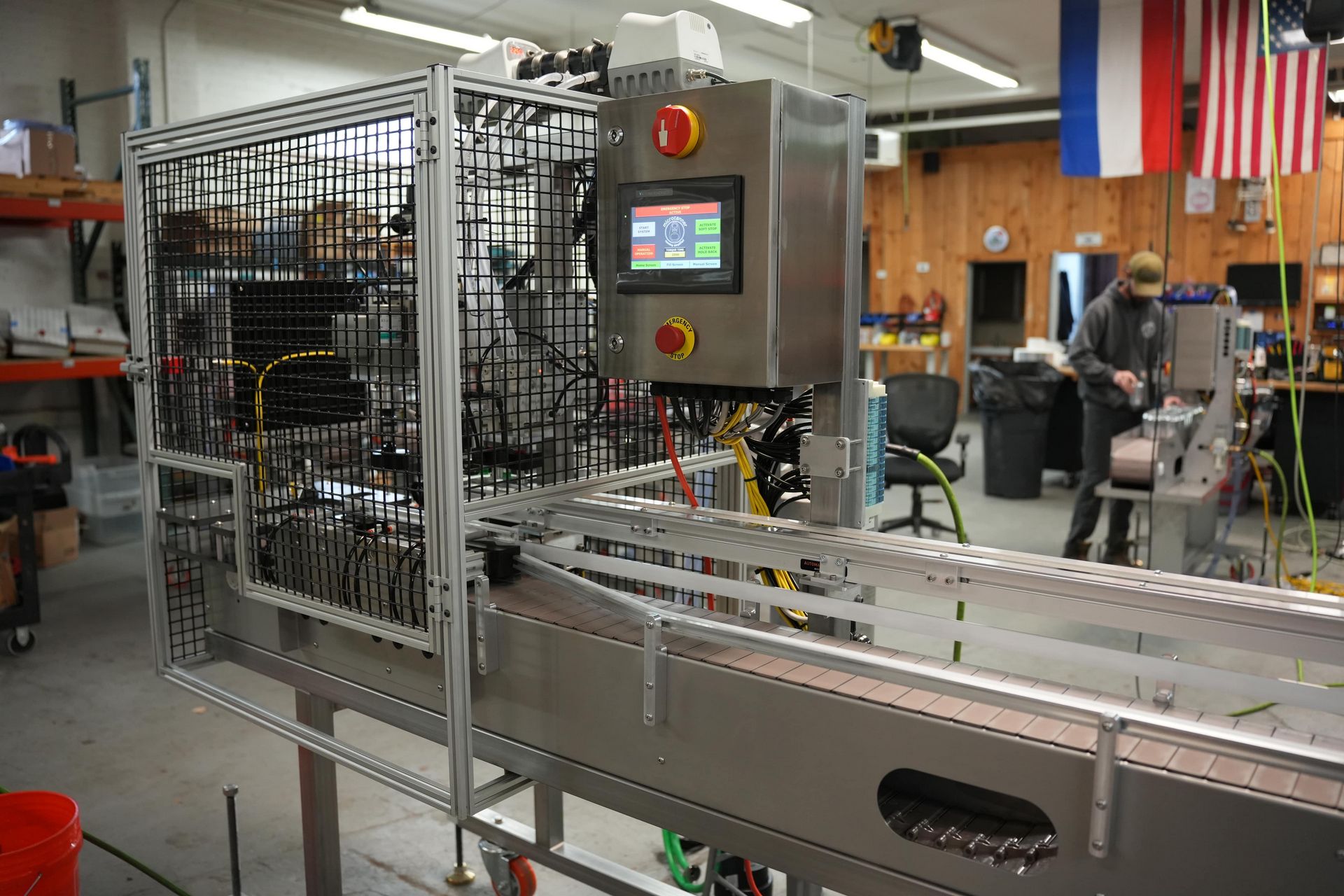

Microcanne​r

MC-CAP

10 BPM, 2 ​Peristaltic Pumps, Fully Automatic

Machine Features

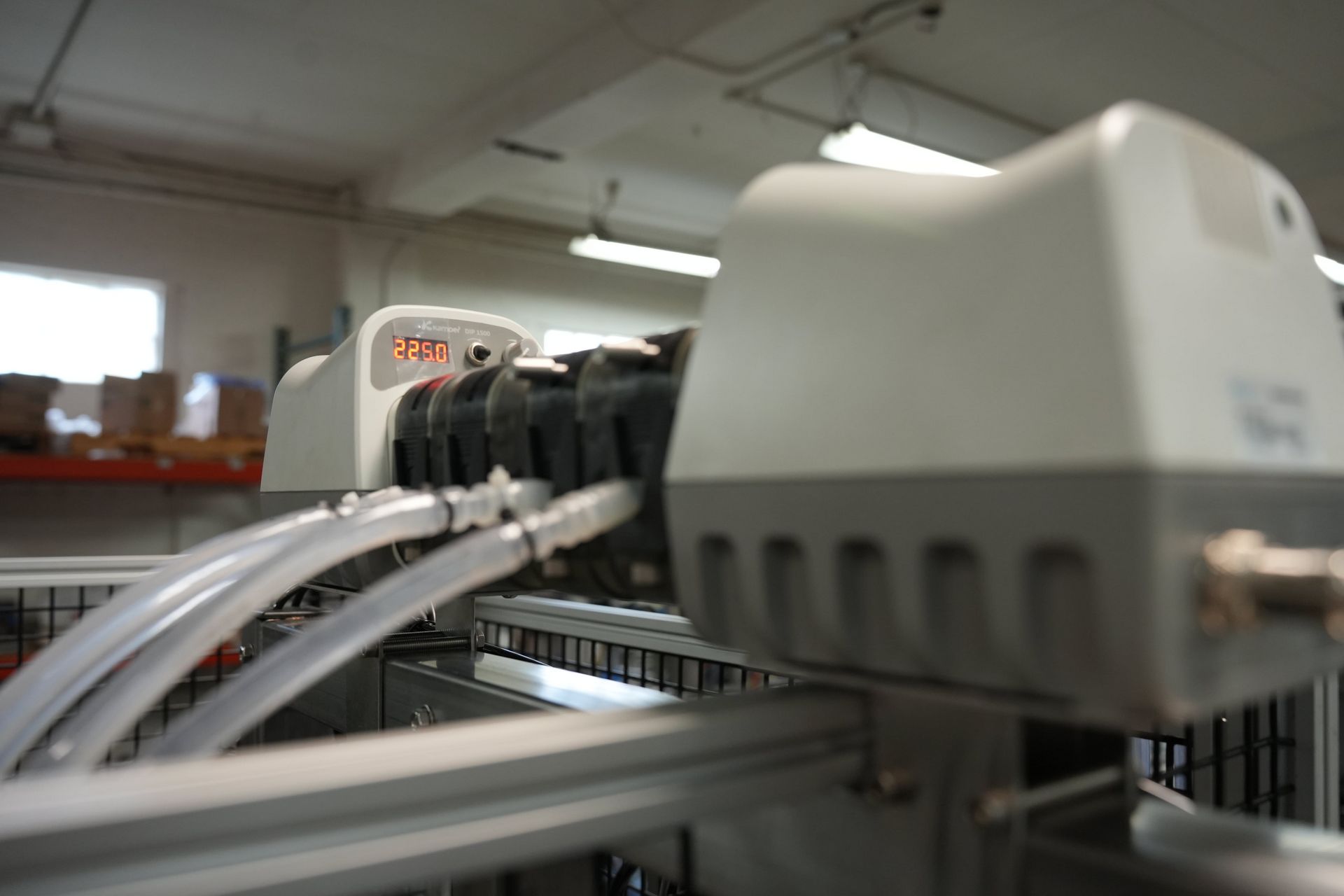

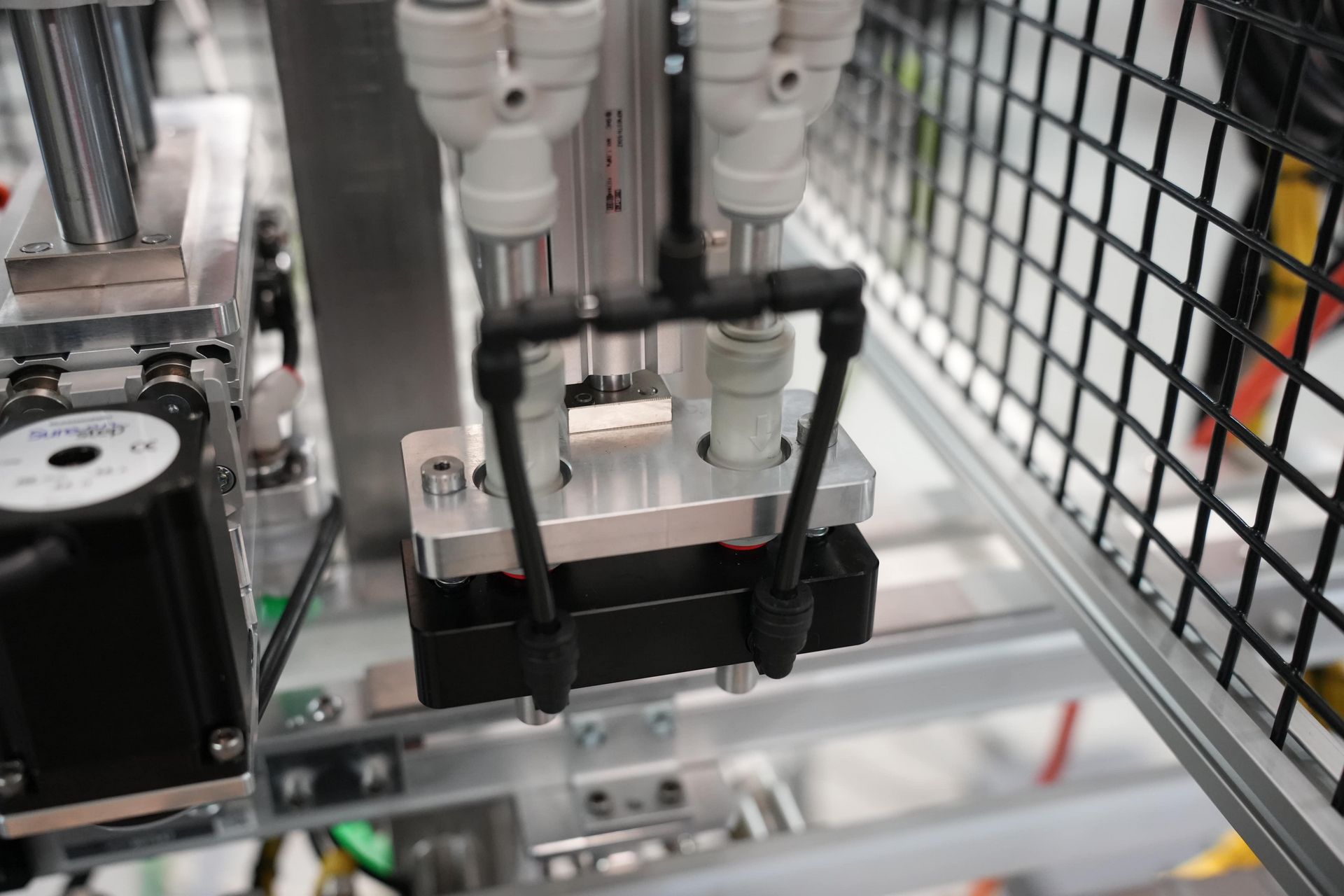

4 HEADS, 2 PUMPS

Allows for precision fills that can be adjusted on the screen in real time. Each pump has two heads, each pump fills one bottle so you can get ​precision fills every time.

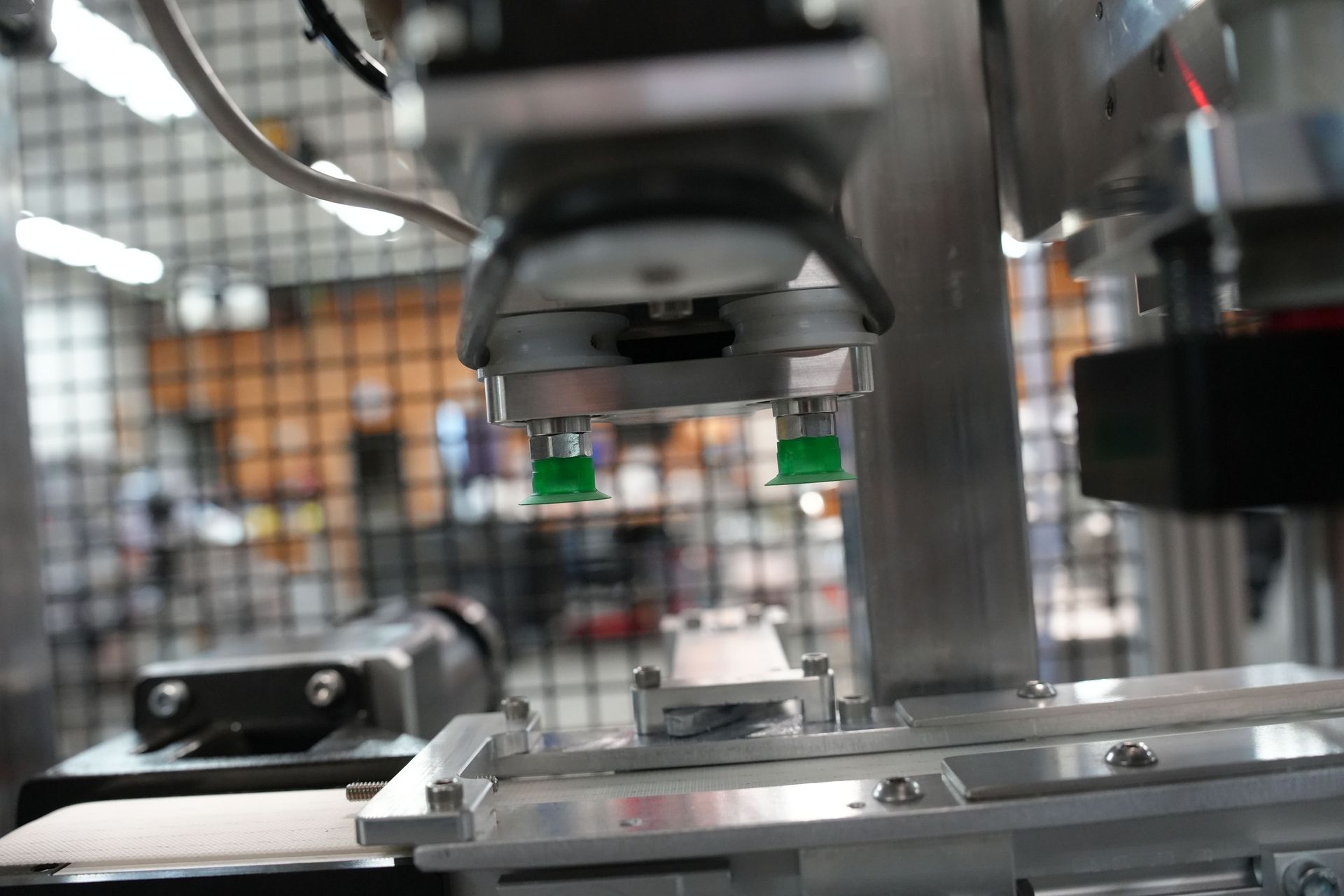

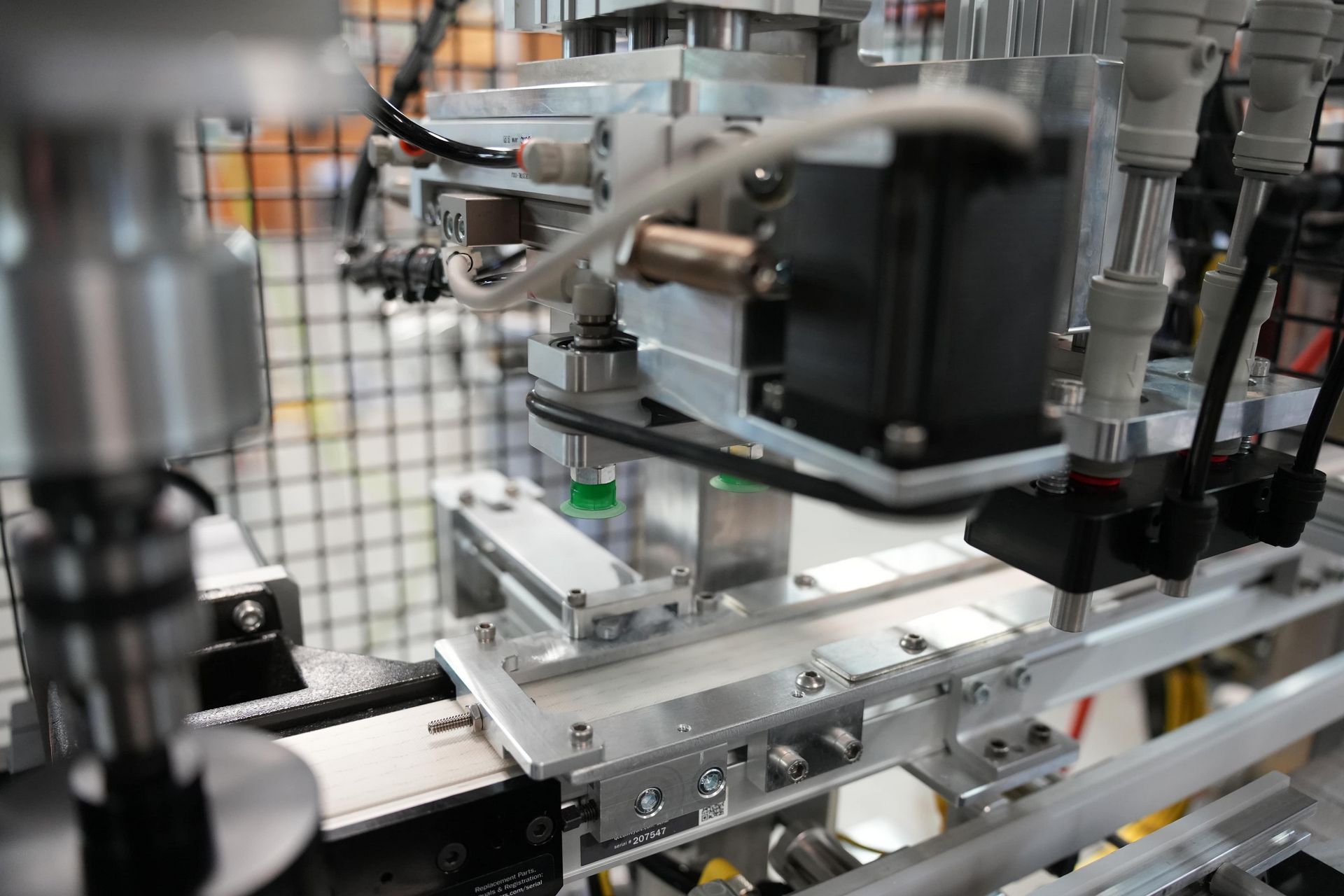

LID APPLICATOR

Using vacuum pressure, the lid station grabs lids before the bottles have entered the cap station. This allows lids to be applied as fast as possible.

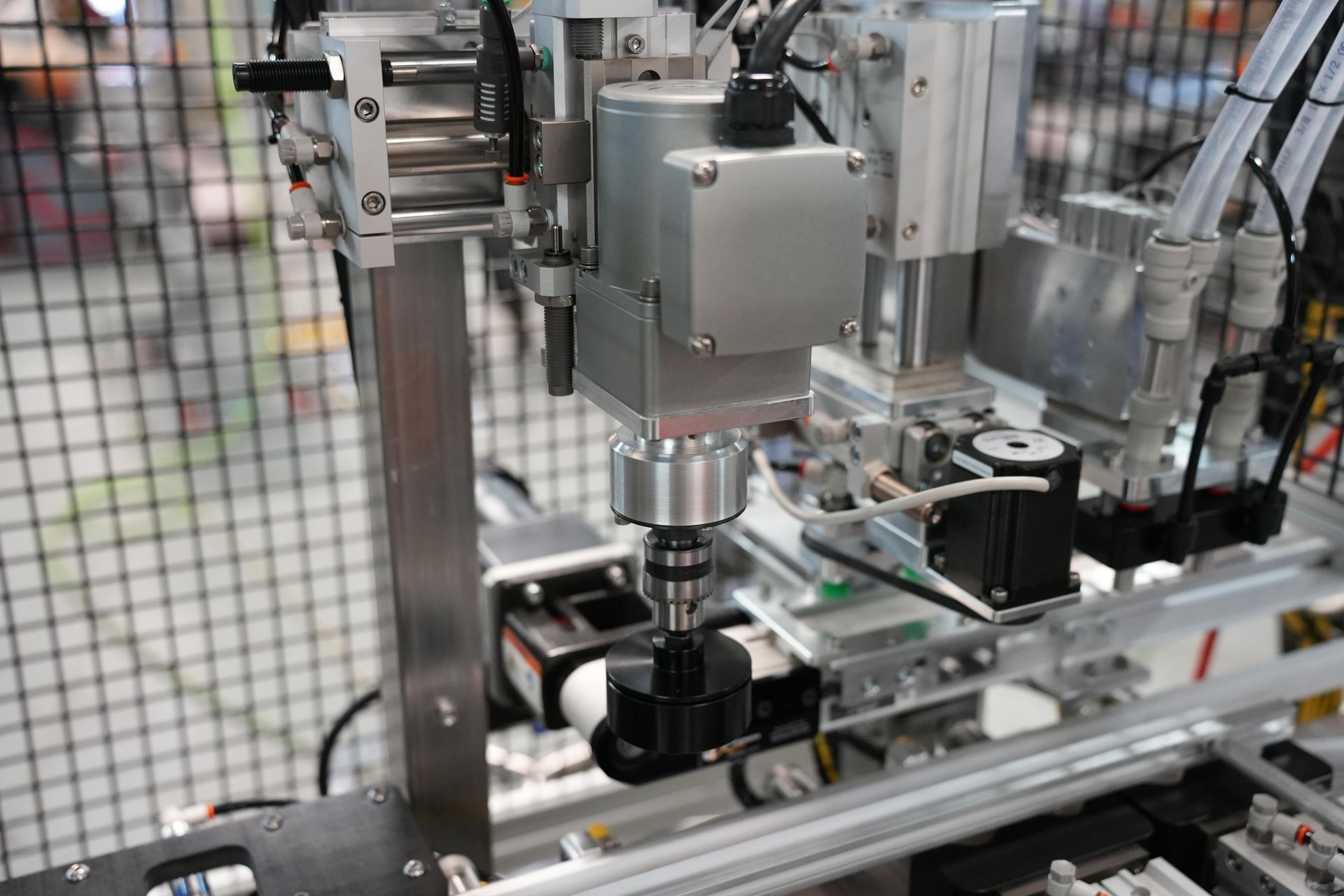

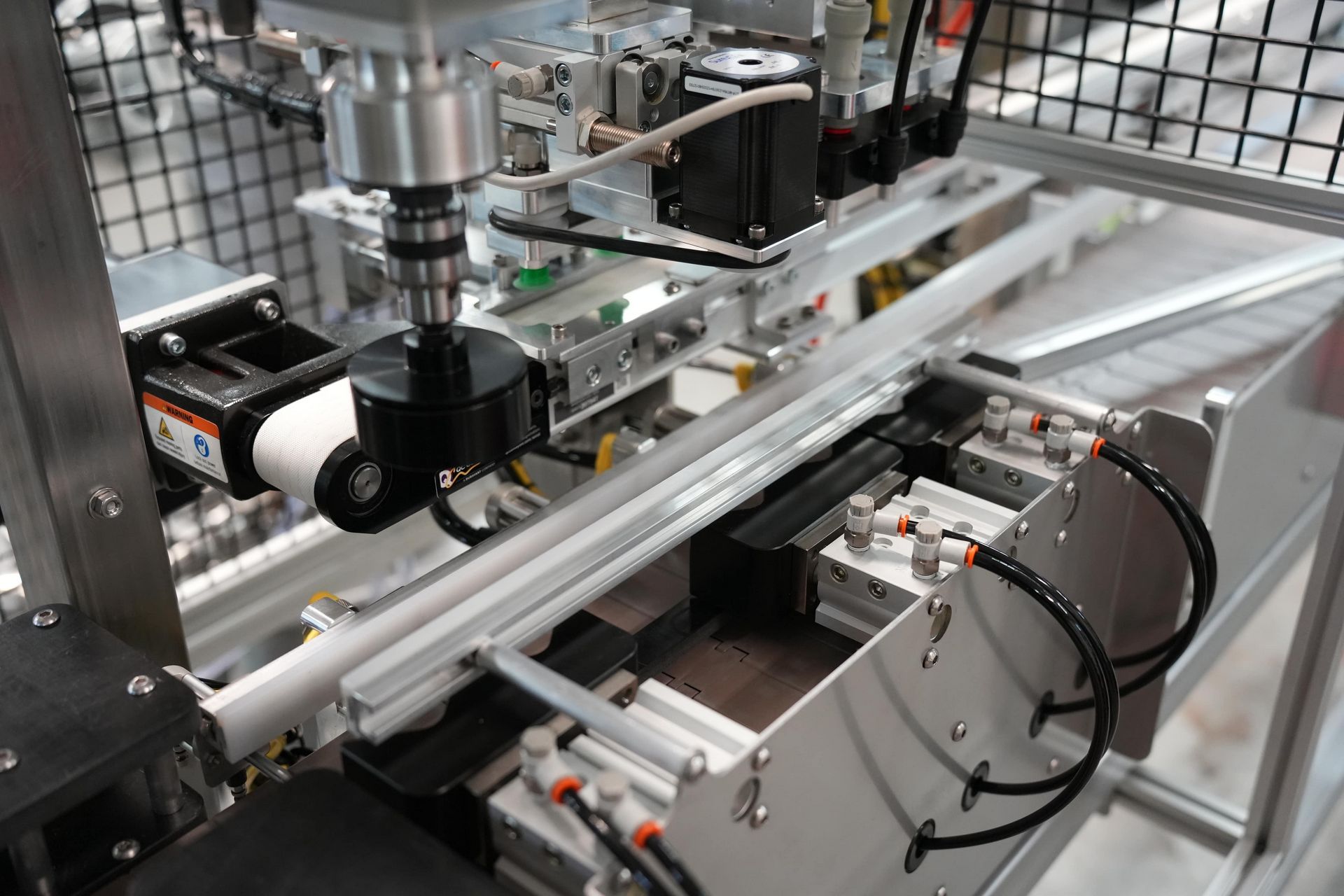

LID TORQUER

The automatic lid torquer is a clutch system that can be adjusted to meet your torque spec every time. If a fault occurs due to a lid ​manufacturing defect, the machine will display a warning.

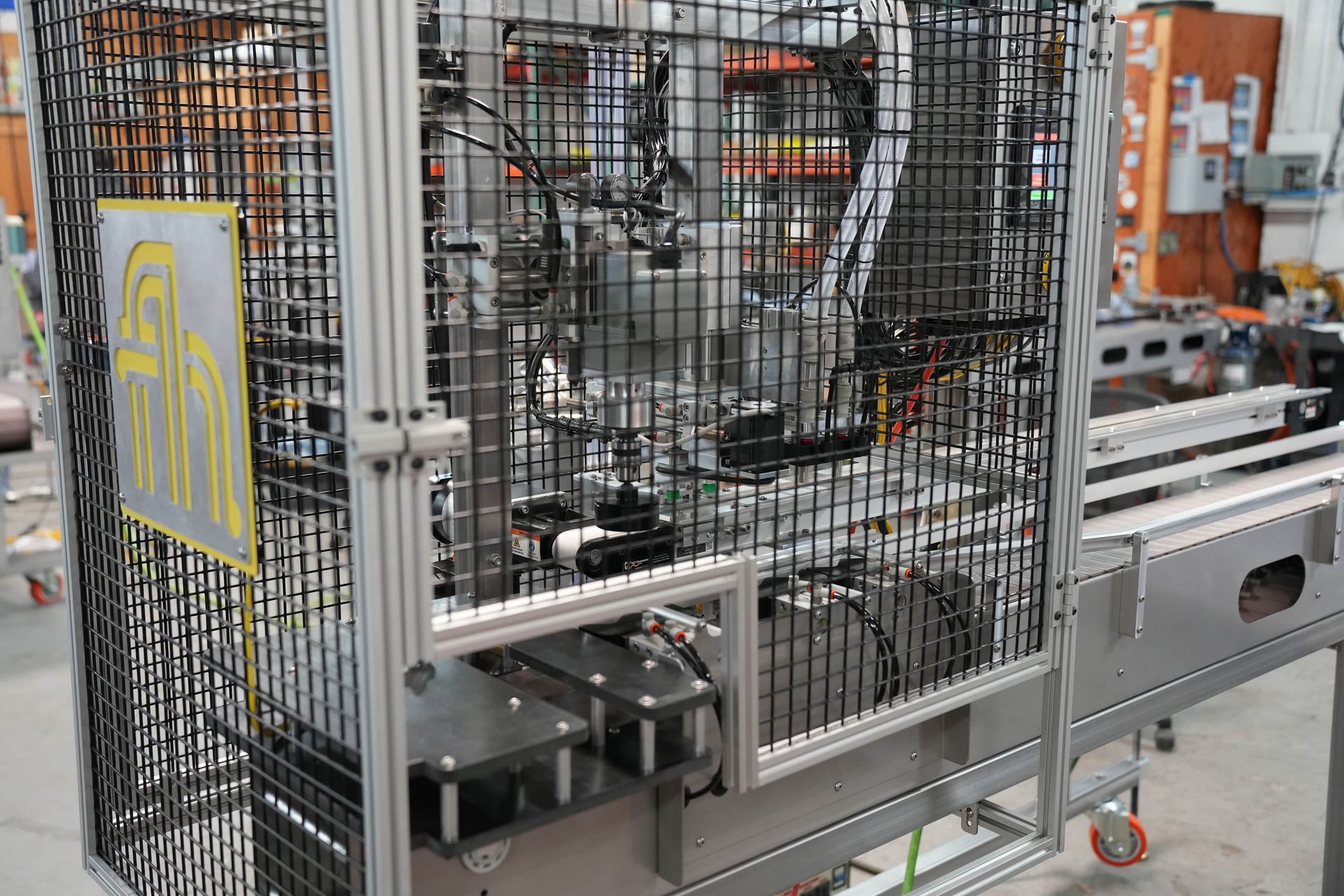

DOOR INTERLOCK SAFETY

If either of the two doors is opened while operating the MC-CAP, it will automatically go into a "pause" state allowing each ​component to stop at a set point. When the door is closed, the MC-CAP will smoothly resume running.

AUTOMATIC BOTTLE EXIT

The MC-CAP automatically pushes bottles out of the machine allowing for easy use of ancillary equipment to be attached.

  • Up to 10 bottles per minute
  • Counter pressure filling
  • Vacuum lid application
  • Automatic filling
  • Automatic purge
  • Automatic lid application
  • Automatic lid torquing
  • Washdown rated
  • 2 ​peristaltic pumps
  • 4 pump heads (2 per bottle)
  • Safety door interlock system
  • Intelligent pause
  • Automatic bottle exit
  • 120V OR 230V Single phase
  • 6 CFM of dry air @ 80 PSI
  • 1 CFM of CO2 @ 10 PSI
  • Length: 27"
  • Width: 12"
  • Height: 28"
  • Height with cap tube: 57.5"
  • Weight: 79 lbs (36 kg)
